BAE Systems Submarines – Doosan DBC130 Horizontal Borer, Tube Bending Equipment, Lathes & Vehicles
- LOT 1
![site]()

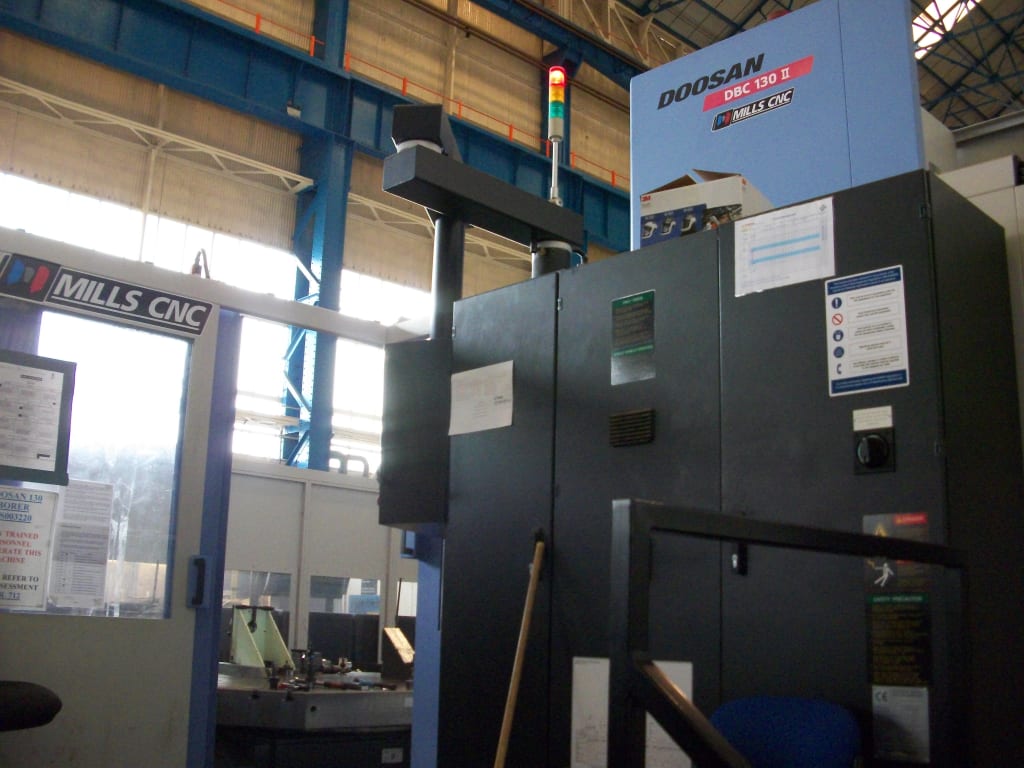

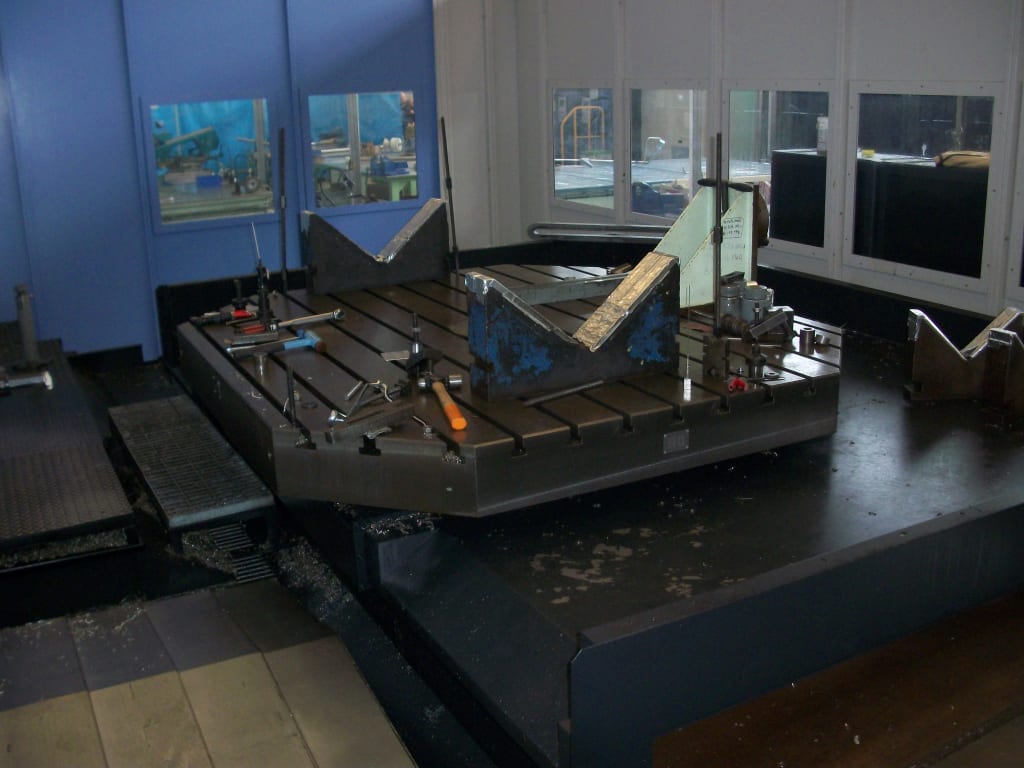

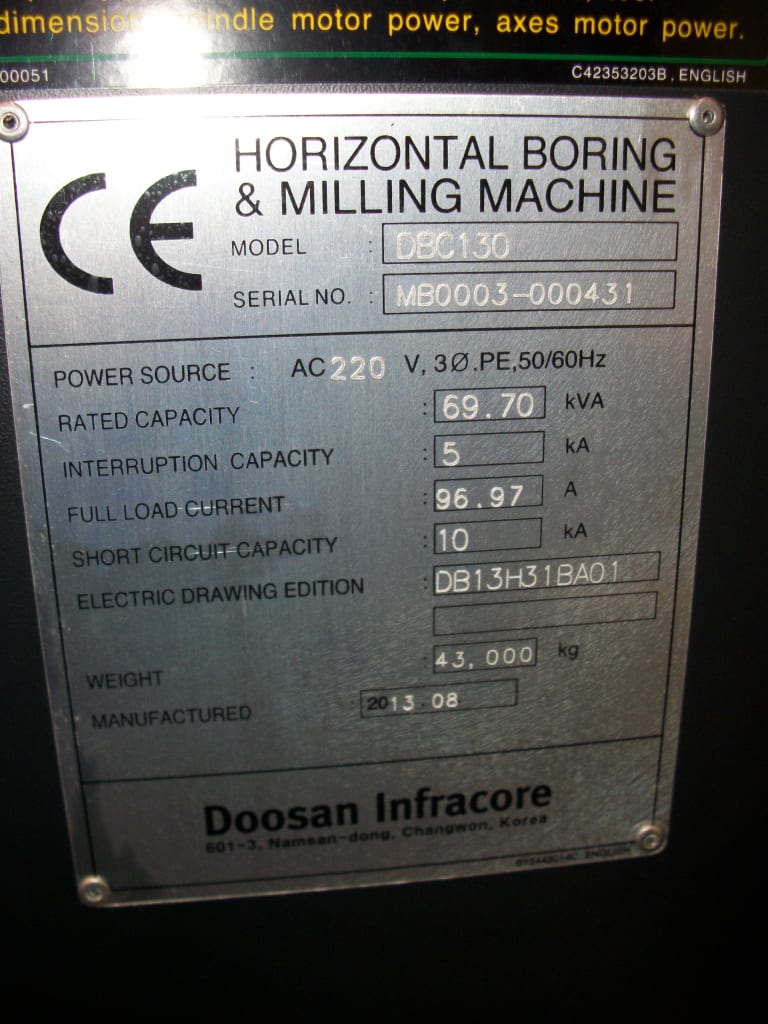

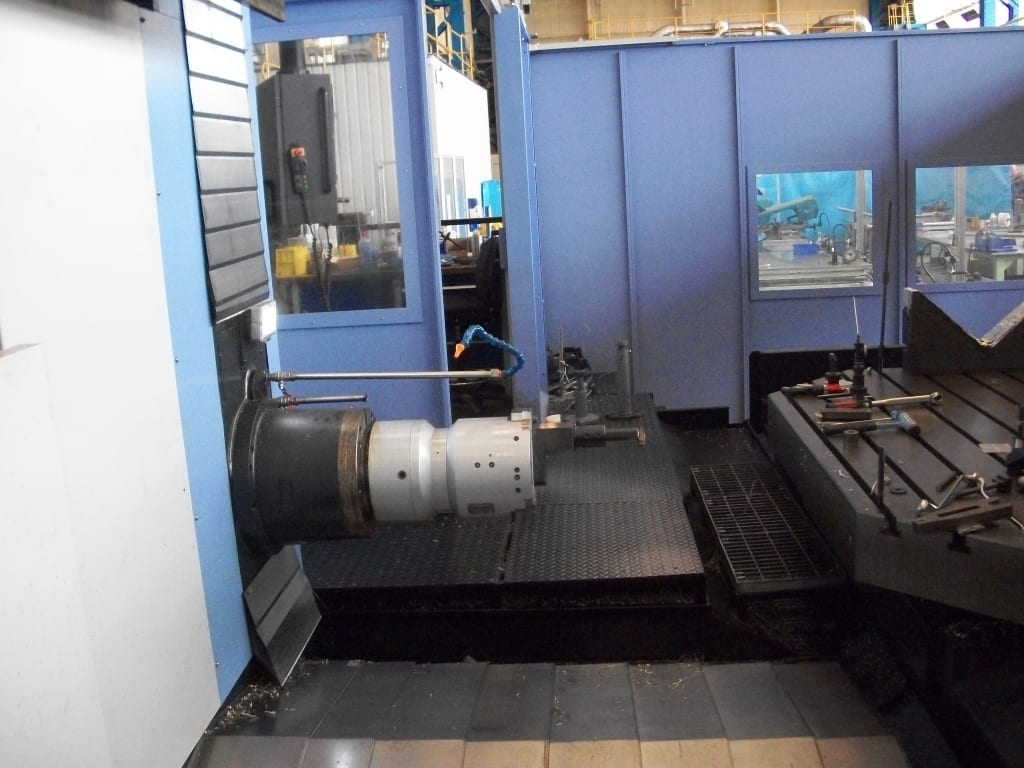

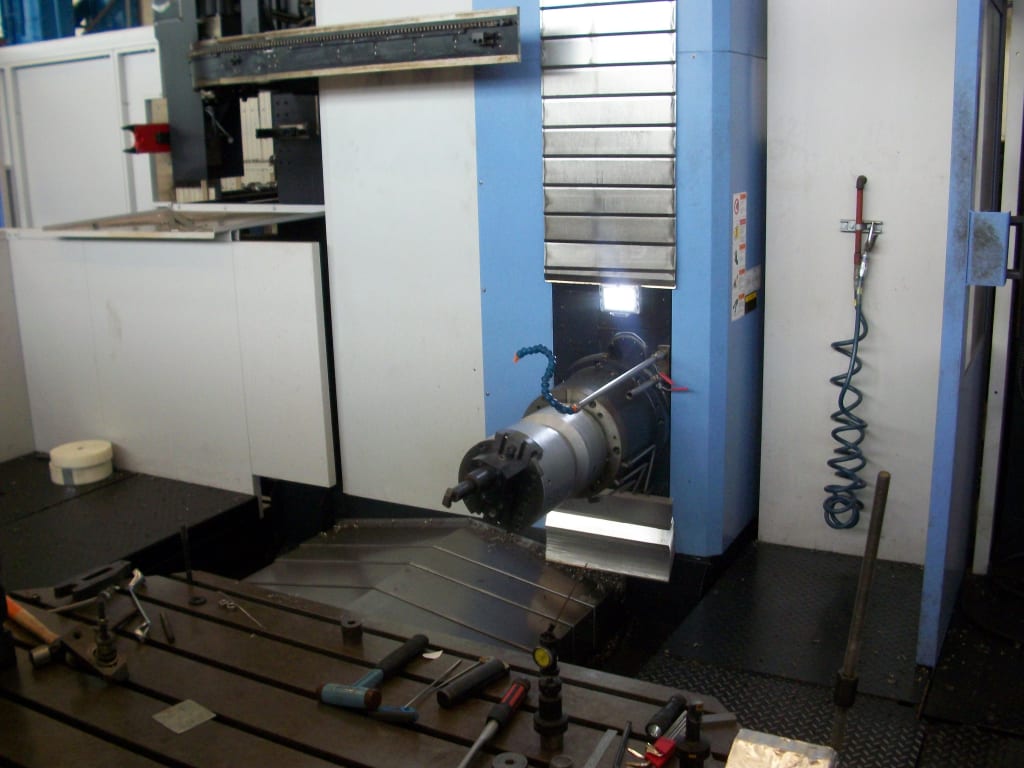

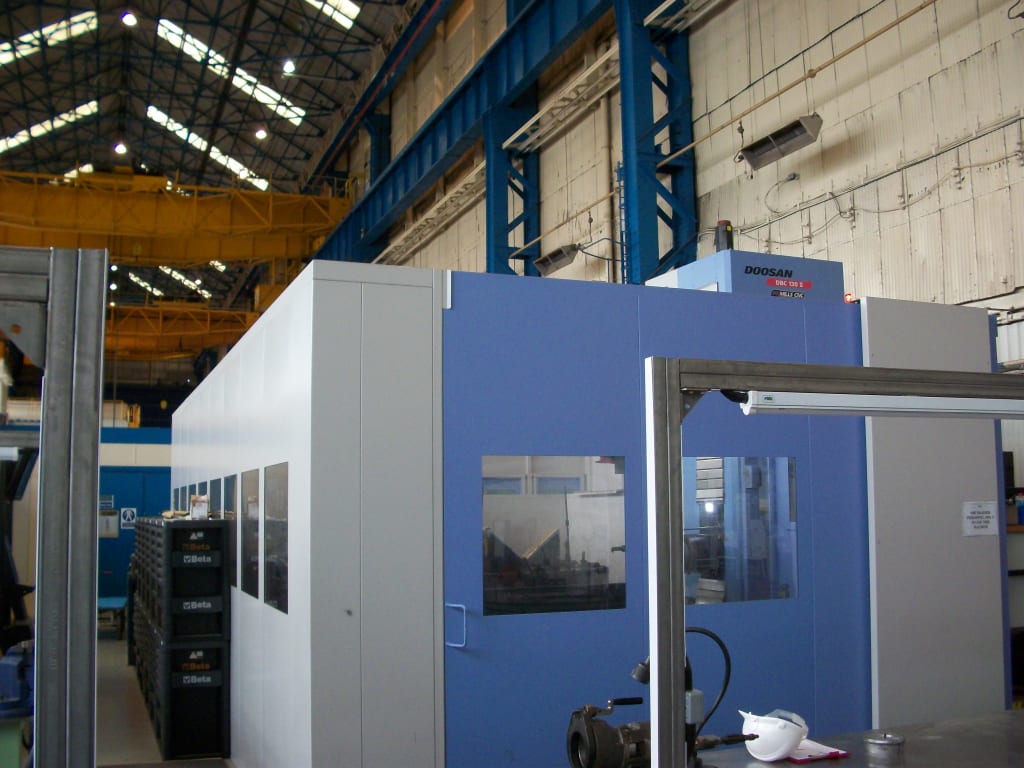

2013 Doosan DBC130 CNC Horizontal Milling/Boring Machine
Table Dimension 1,800 x 1,600mm 913 'T' Slots). Maximum Table Load 15,000kg. Axis Travel 'X'=3,000mm, 'Y'=2,000mm, 'Z'=1,600mm, 'W'=600mm. Maximum spindle Speed 3,000rpm (26kW Motor). 90 Position ATC. S/No.MB0003-000431 (2013/08). - LOT 2
![site]()

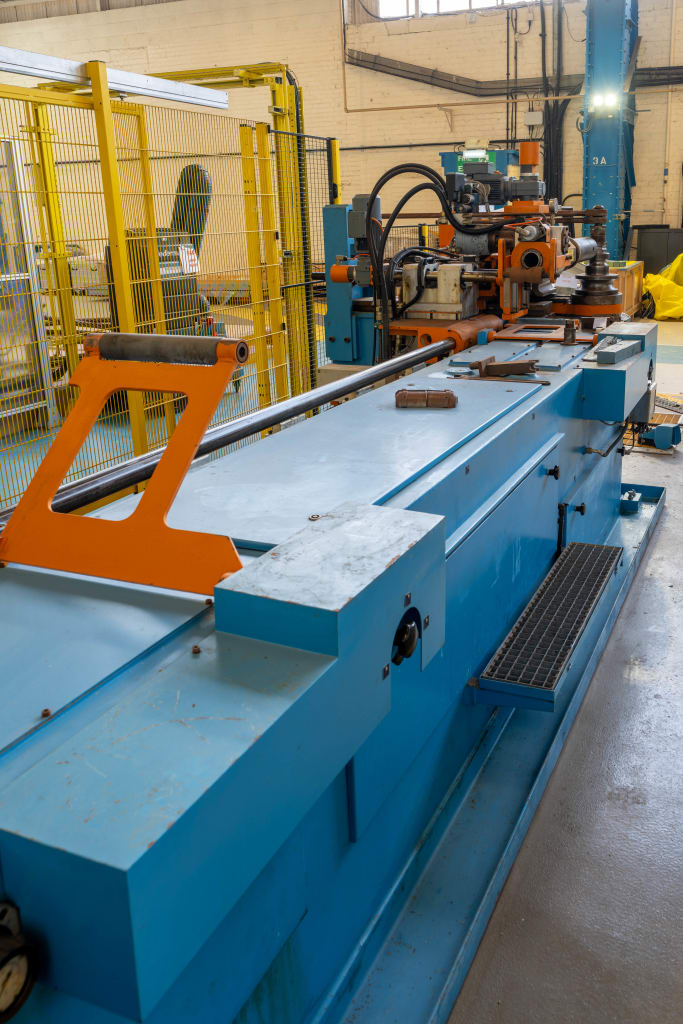

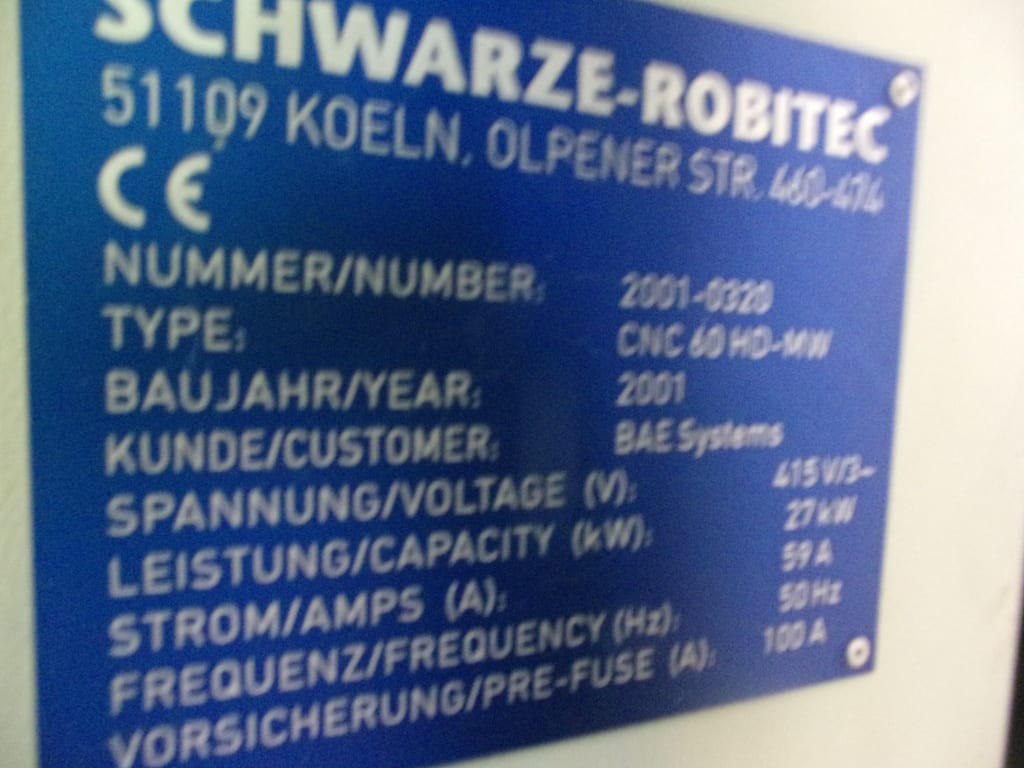

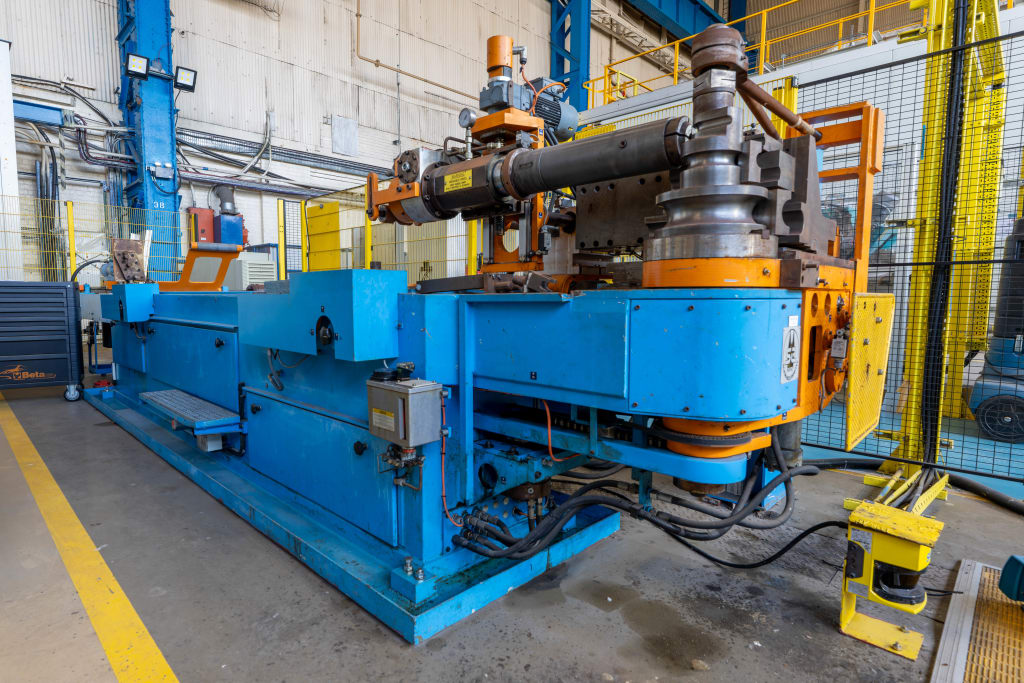

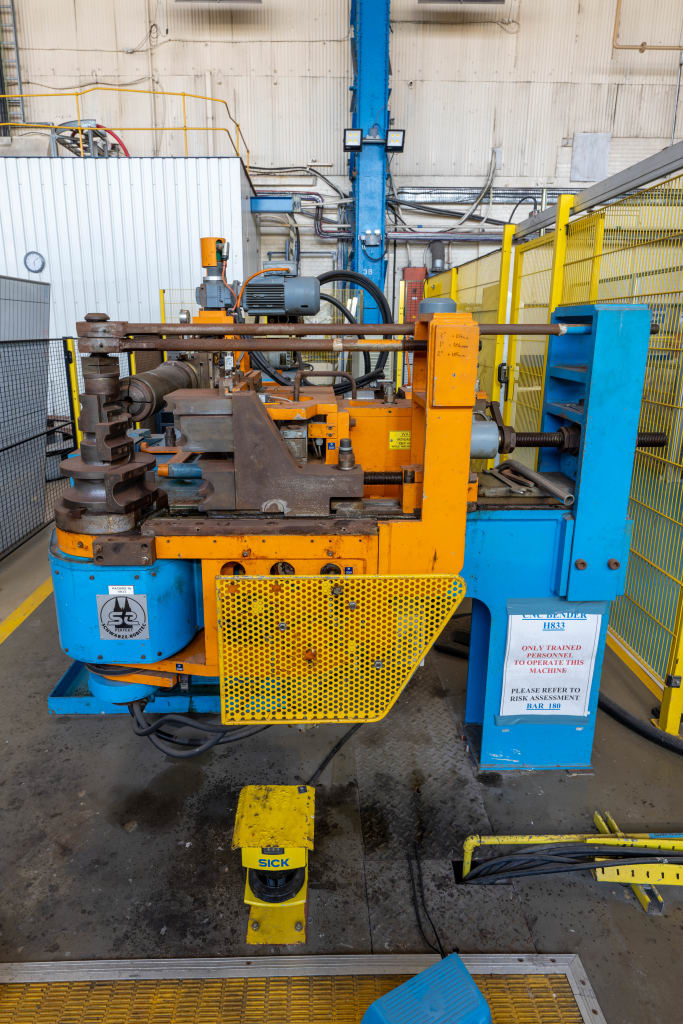

2001 SCHWARZE ROBITEC CNC 60HD-MW Tube bending machine
Maximum Tube Diameter Up To 60mm. Maximum Bending Radius 30-150mm. Maximum wall Thickness 5.5mm. Power 27kW. S/No. 2001-0320 (2001). - LOT 3
![site]()

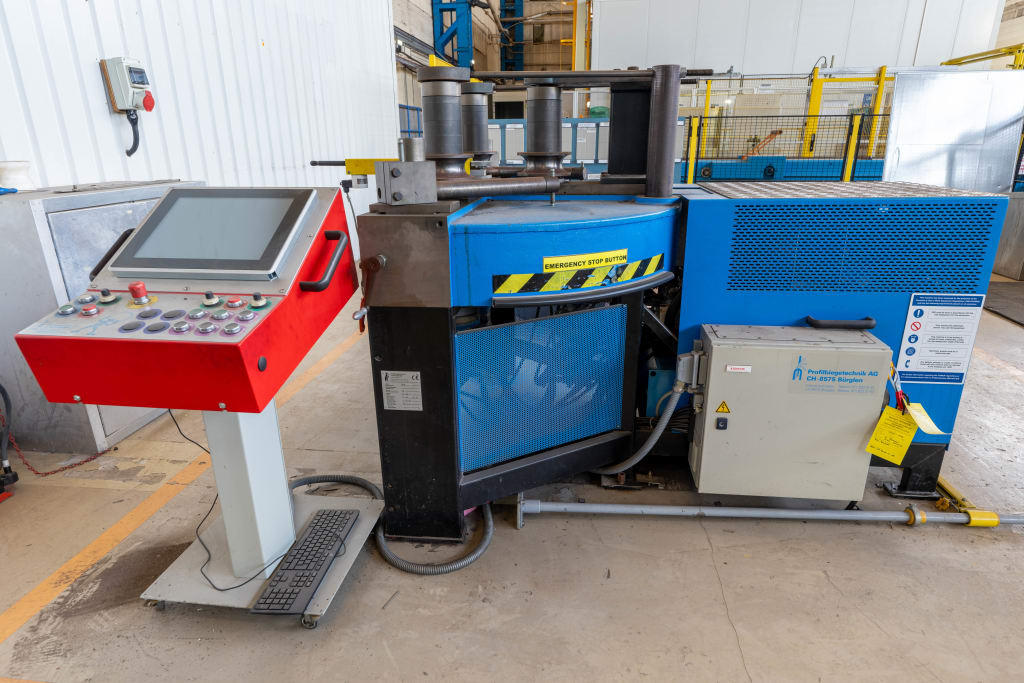

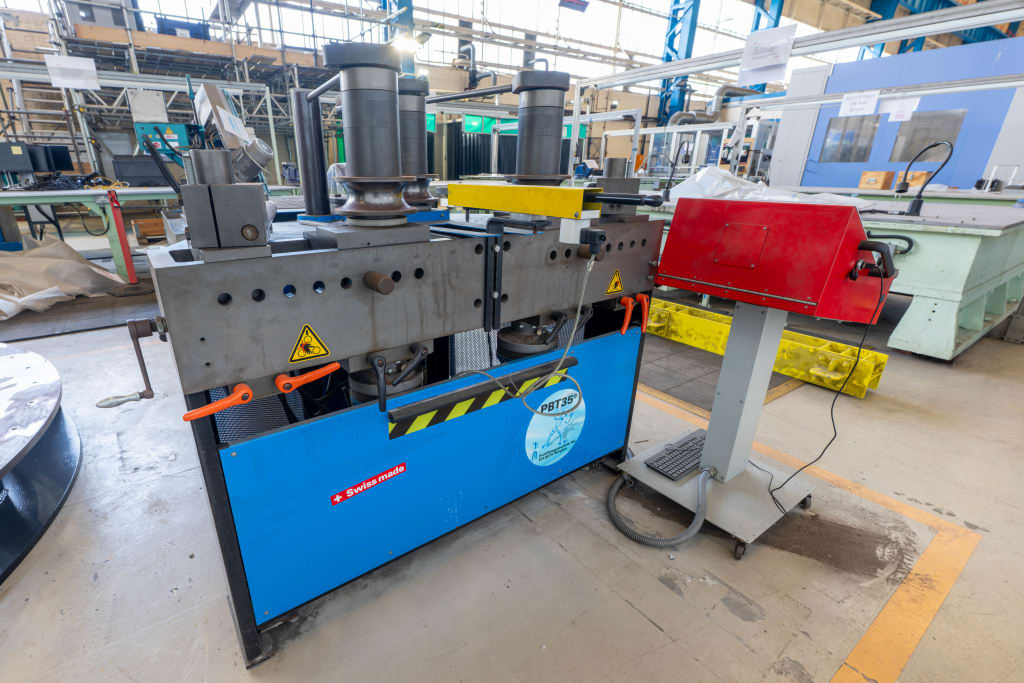

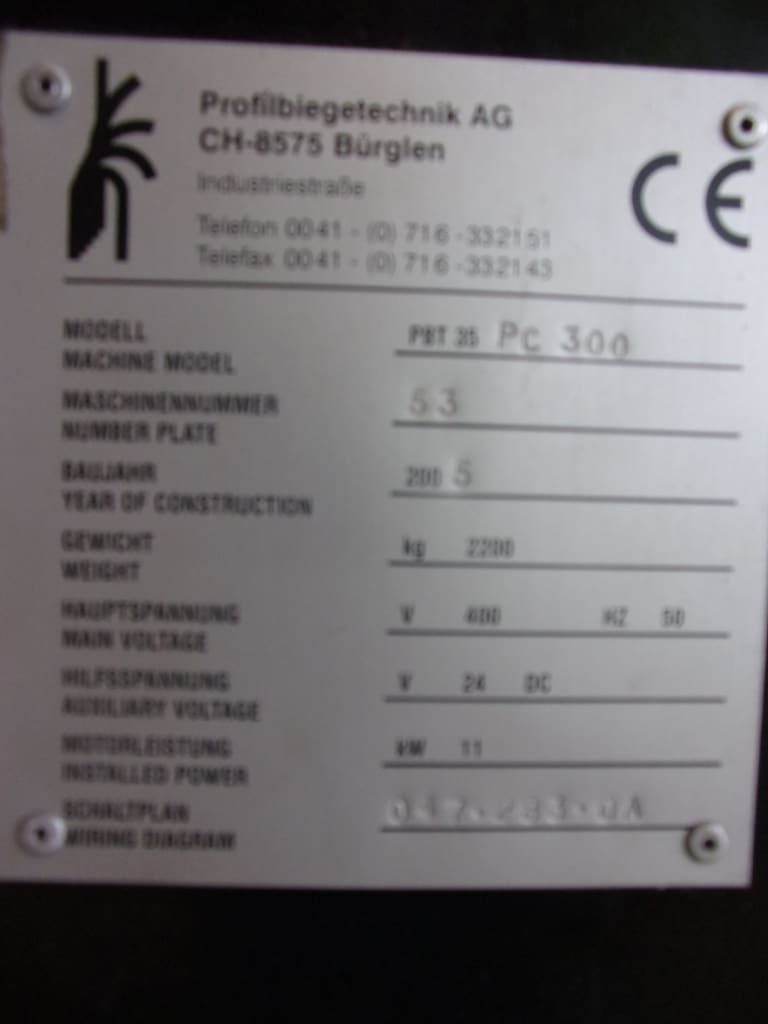

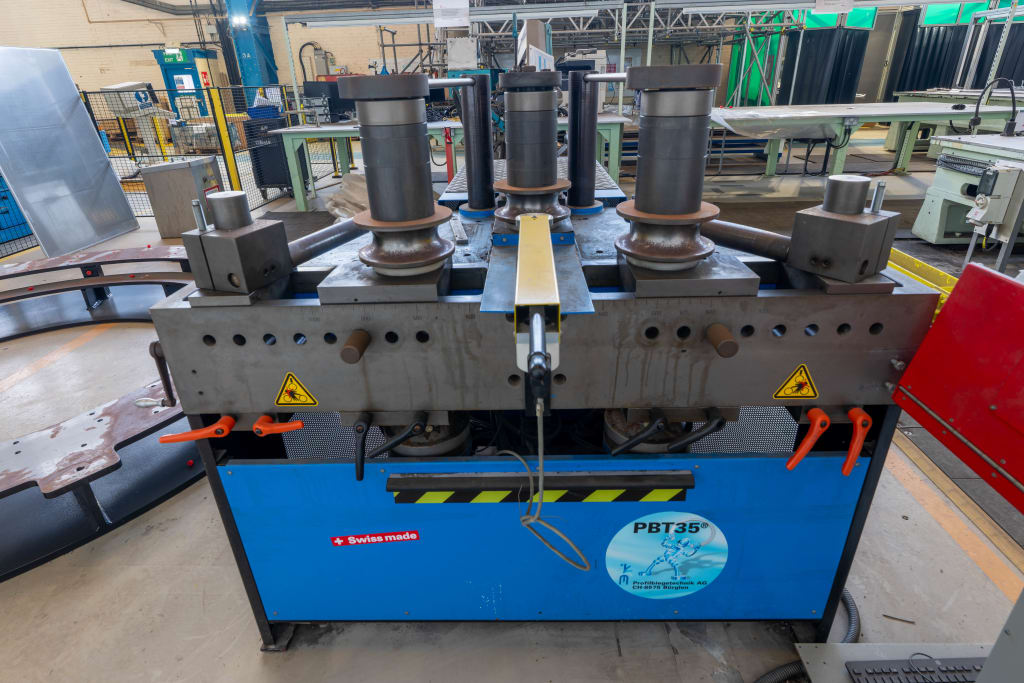

2005 PBT 35 Profile Bending Machine With PC 300 Control
(3) 400mm High Servo Driven Rollers. 'X' Axis Travel 390mm, Pressing Power 35 Ton, Positioning Accuracy 0.01mm. 'Y' Axis Continuously Adjustable Roller Speed 1–16rpm, Maximum Torque per Roller 3,000Nm, Tool Holder Ø105mm. Power 12kW. Voltage 400V. S/No. 047.233.OA (2005). - LOT 4
![site]()

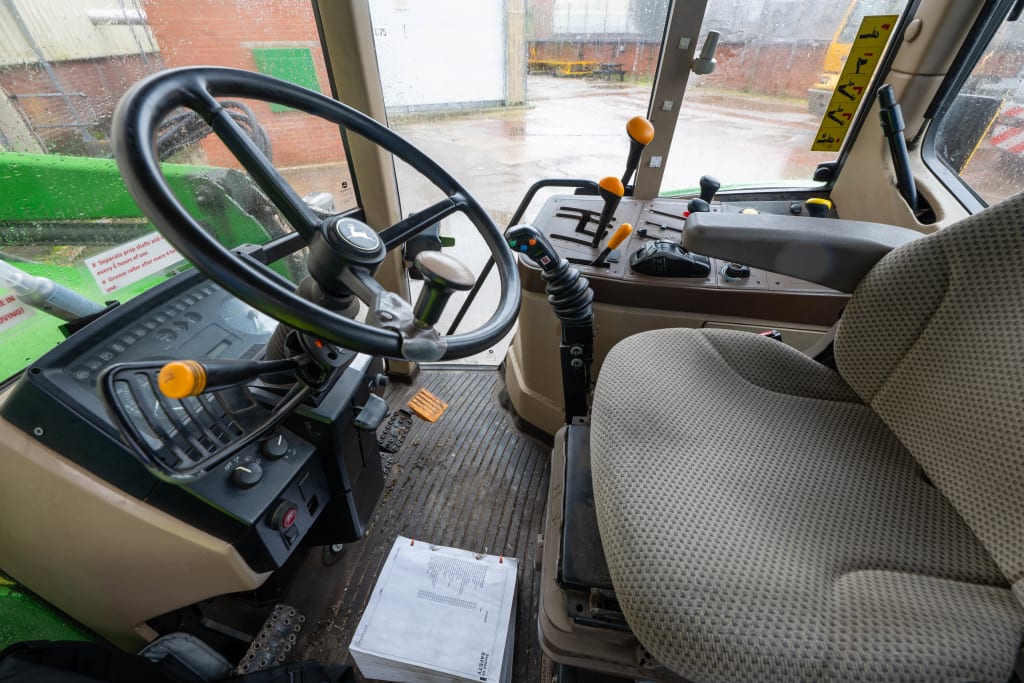

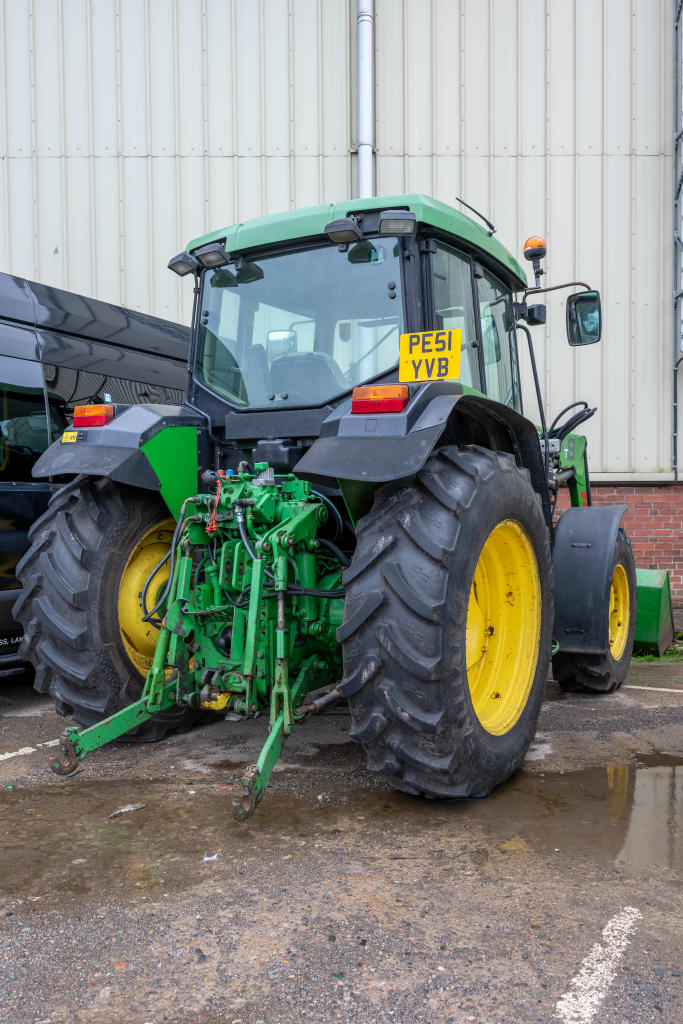

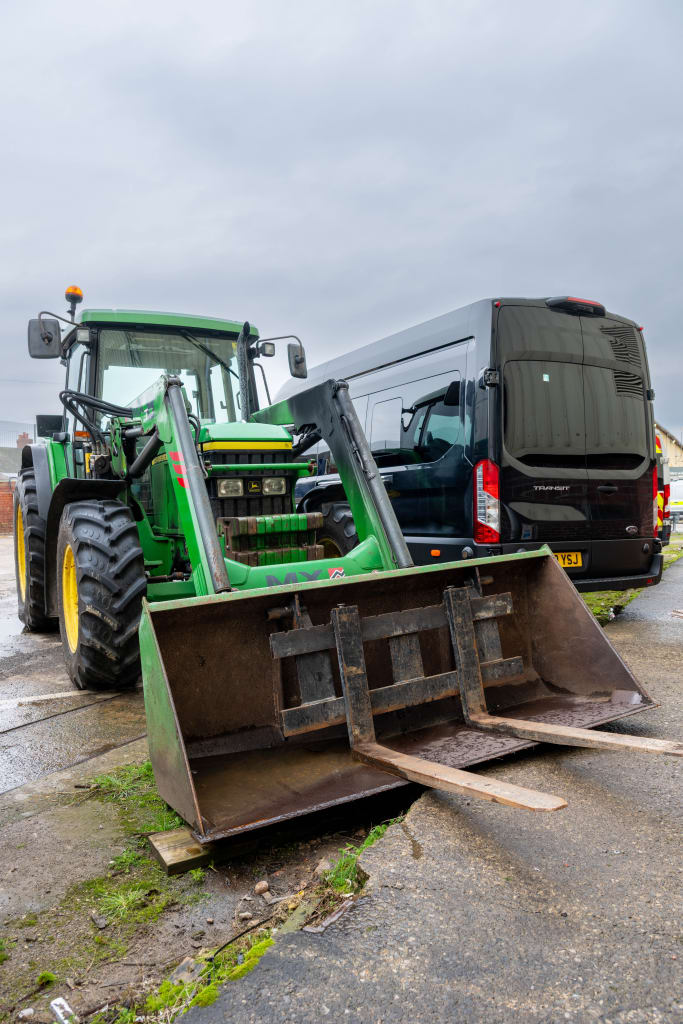

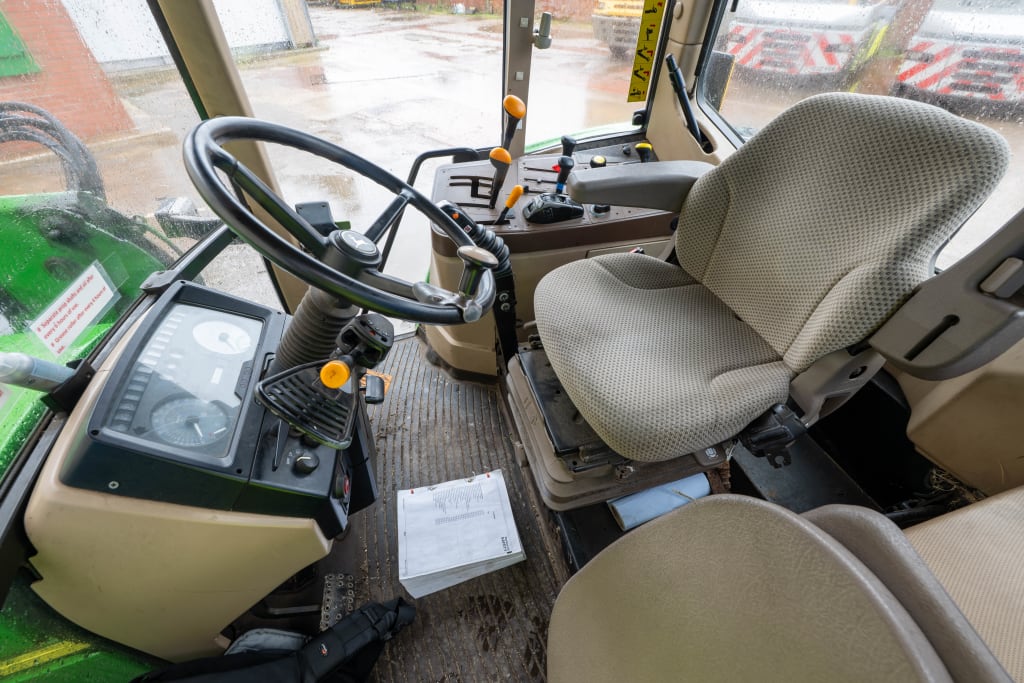

2001 John Deere 6R 250 Medium Sized Tractor with MX8 Loading Shovel
Reg Number PE51 YVB. Engine Make John Deere PowerTech™ PSS. Engine Family SJDXL06.8309. Displacement 6.8L. Rated Engine Power 184kW. Maximum Engine Power 202kW. Transmission Type AutoPowr™. Rear Hitch Category (SAE Designation) Category 3N. Pump Rated Output 195L. Wheel Rr Track Configuration: Wheel (4WD). Maximum Speed Forward 26mph. Minimum Speed Forward 0.03mph). Creeper Available. Reverser: Electrical. Wet Clutch. S/No. B1. - LOT 6
![site]()

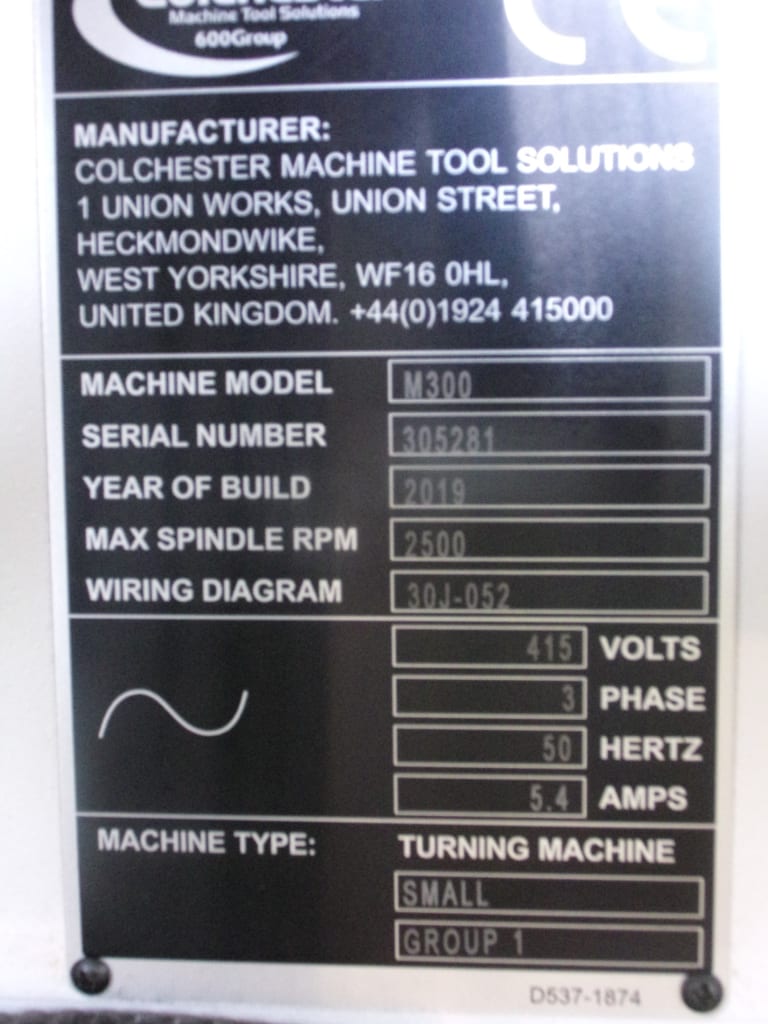

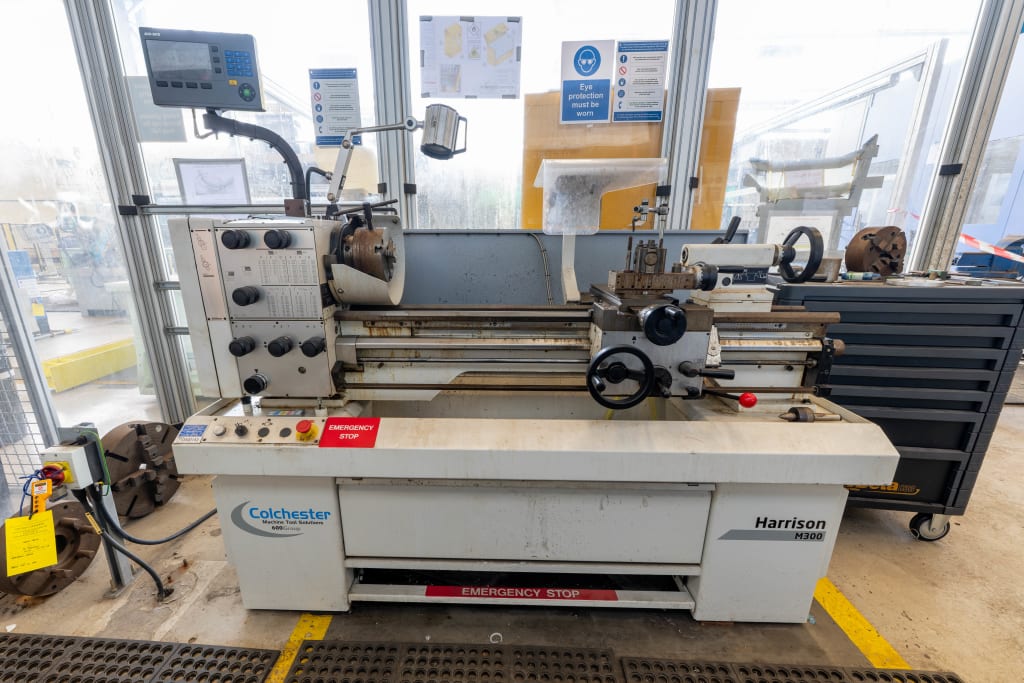

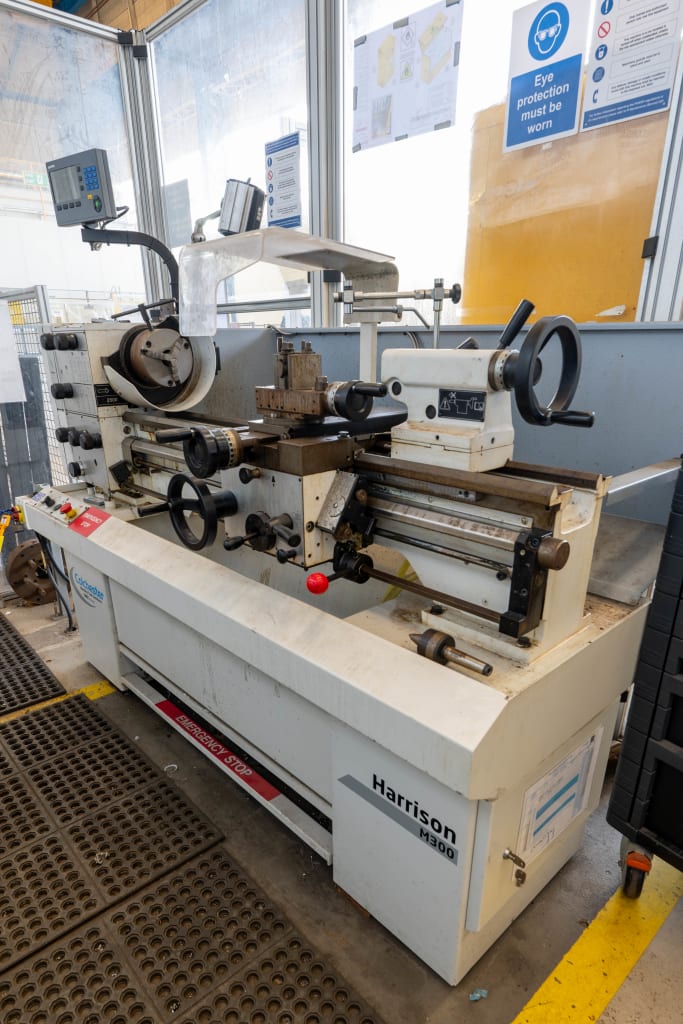

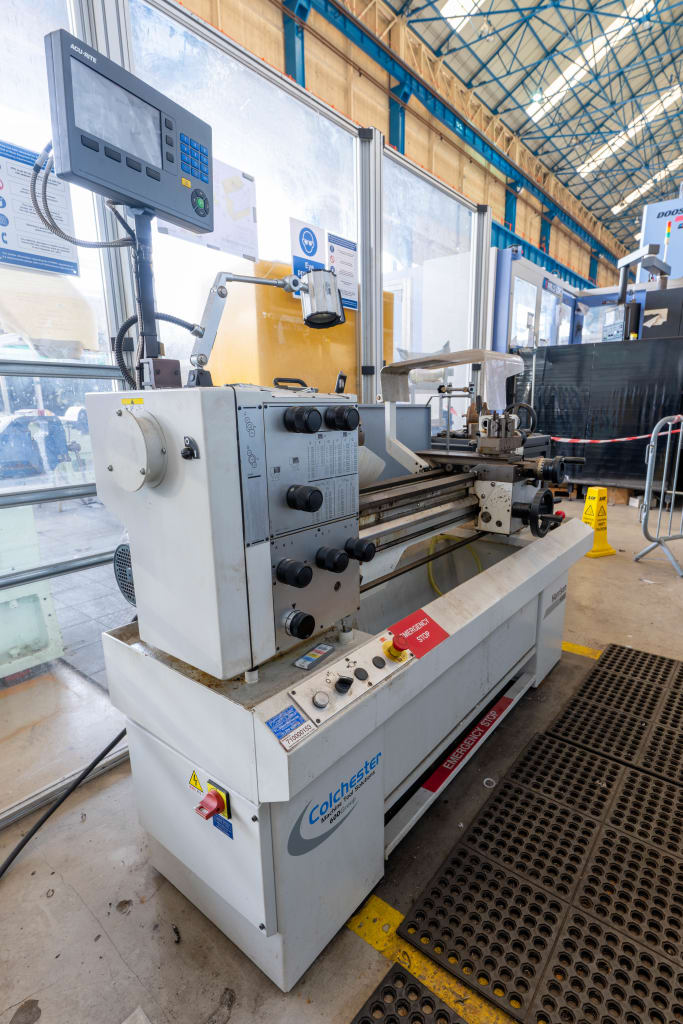

2019 Colchester Harrison M300 Lathe with Acu-Rite DRO
Maximum Swing Over Bed Ø330mm. Maximum Swing Over Cross Slide Ø210mm, Maximum Swing Over Gap Ø480mm. Distance Between Centres 635mm. Spindle Bore Ø40mm. QTC Tool Post. Spindle Speed Range (12) 40-2,500 rpm (2.2kW Spindle Motor). Spindle Nose D1-4. Tailstock Quill Ø42mm, Quill Travel 110mm, Morse Taper No.3. S/No. 305281 (2019). - LOT 7
![site]()

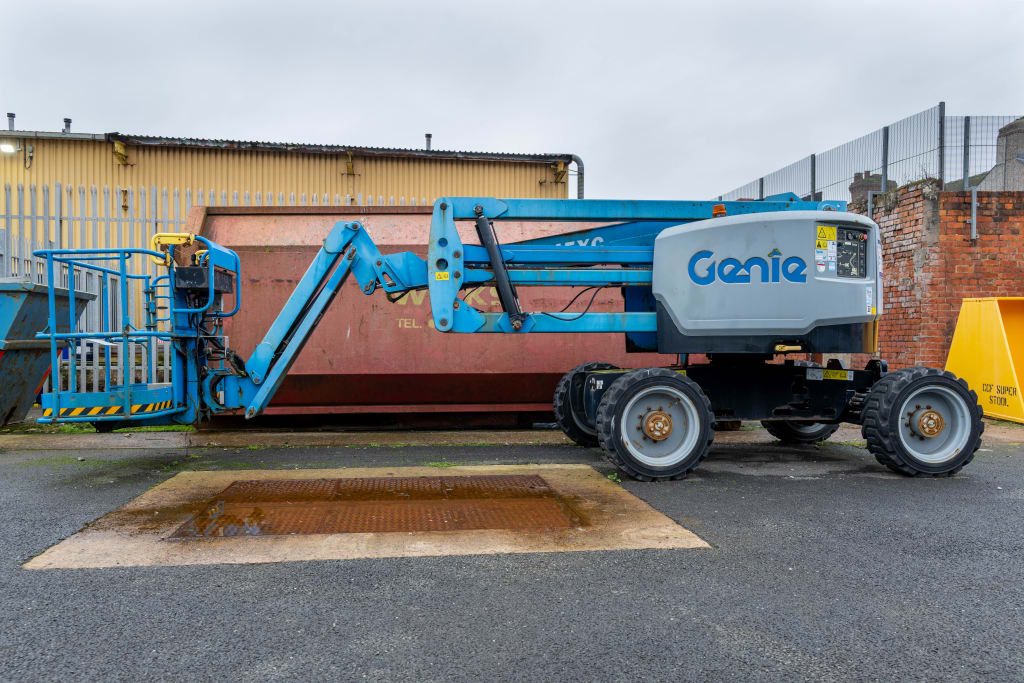

Genie Z-45/25 XCM Mobile Elevated Working Platform (Cherry Picker)
Working Height 15.8-16.0m. Platform Height 13.8-14.0m. Horizontal Outreach 7.5-7.6m. Up-and-Over Clearance 7.0-7.2m. Platform Capacity 227kg. Stowed Dimensions L6.83 x W1.79 x H2m. Machine Weight Approx 6,200kg. S/No. Z-45/25XCM-168. - LOT 8
![site]()
- LOT 9
![site]()

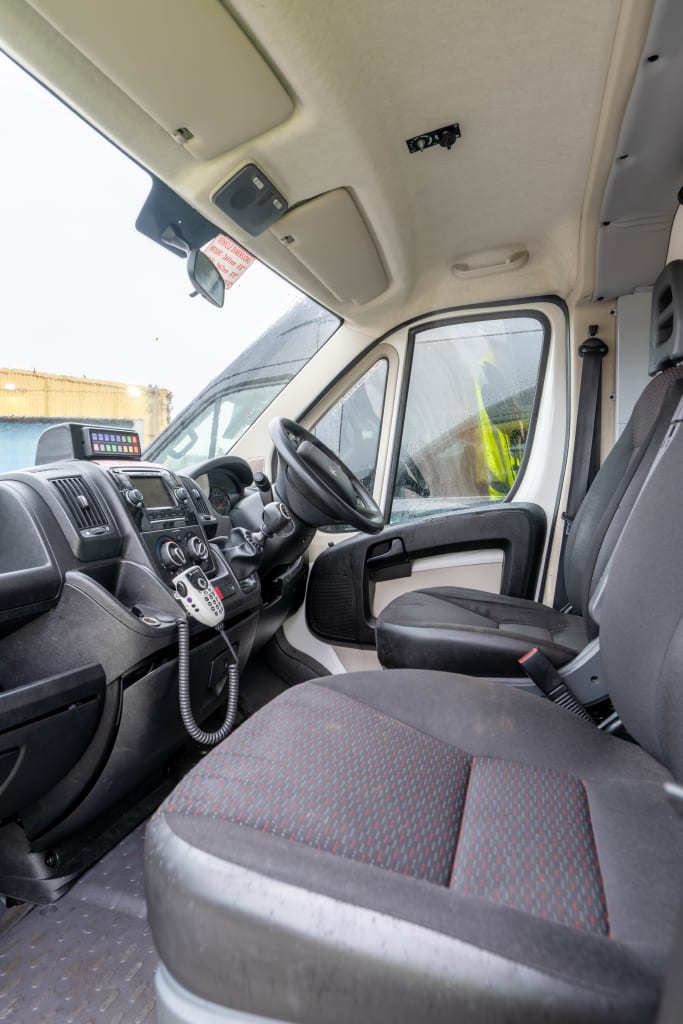

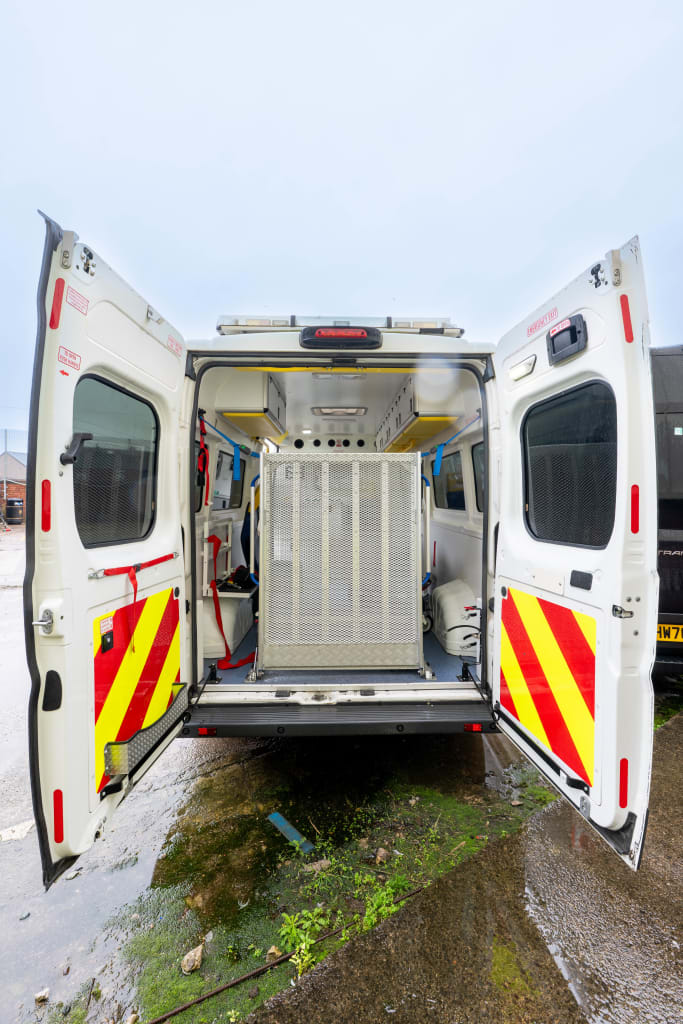

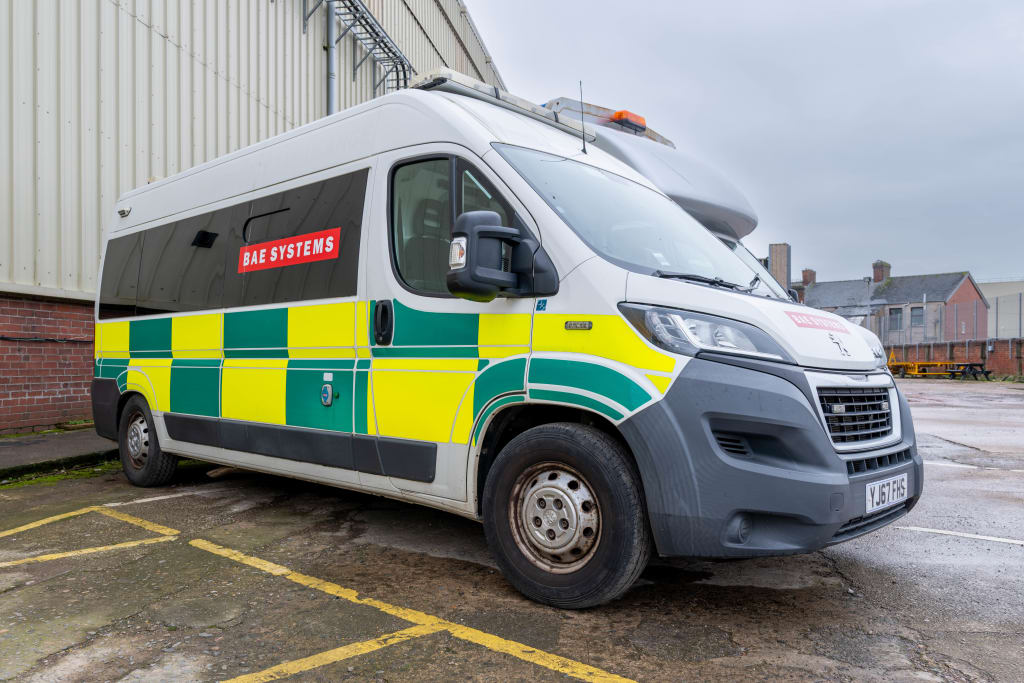

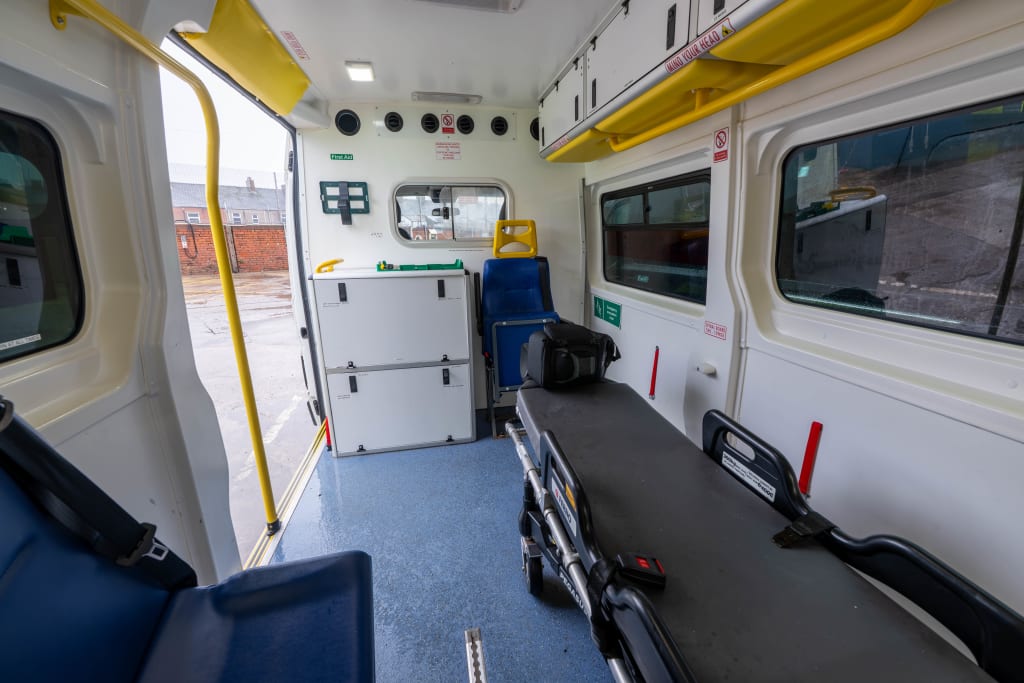

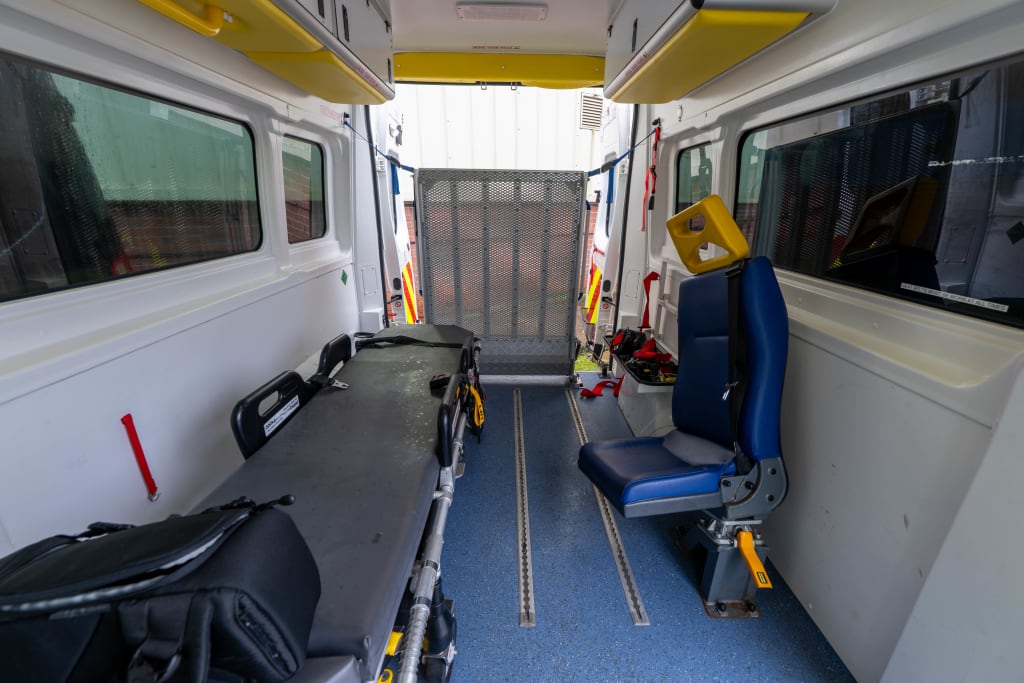

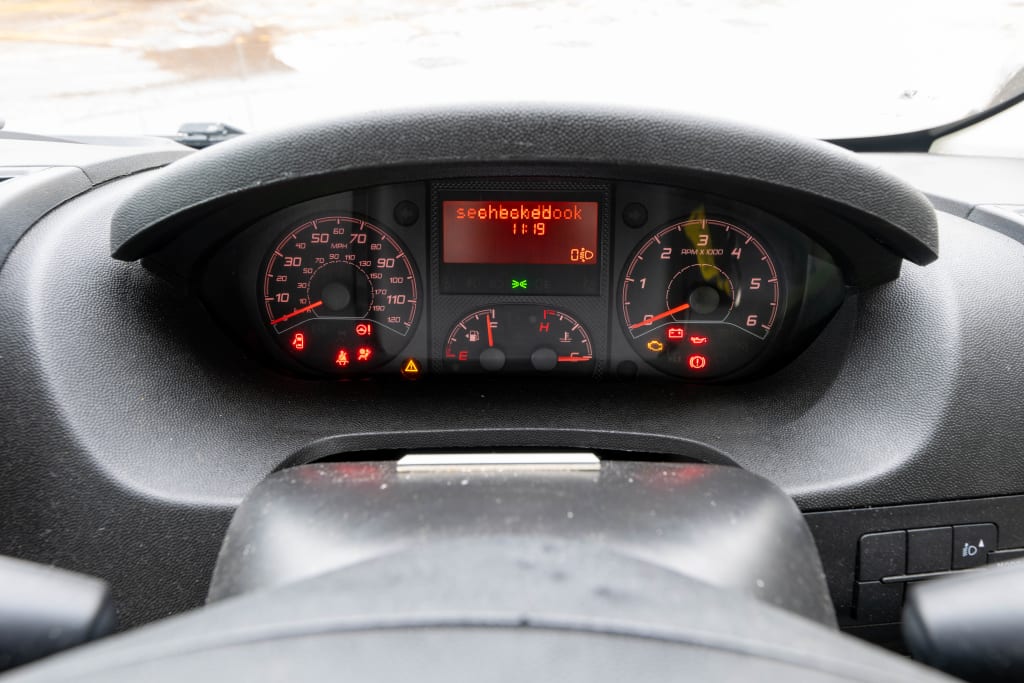

2018 Peugeot Boxer 435 Diesel Ambulance
Cylinder Capacity 1,997cc. CO₂ Emissions 168g/km. Fuel Type DIESEL. Vehicle Type Approval M1. Wheelplan 2 Axle Rigid Body. Revenue Weight 6,500kg. VIN: VF3YD2MFC12G02761. Registration: YJ67 FHS. MOT Until Jan 27 - Mileage (At Last MOT 29/01/26) - 25,175. Tax Until November 2026. - LOT 10
![site]()

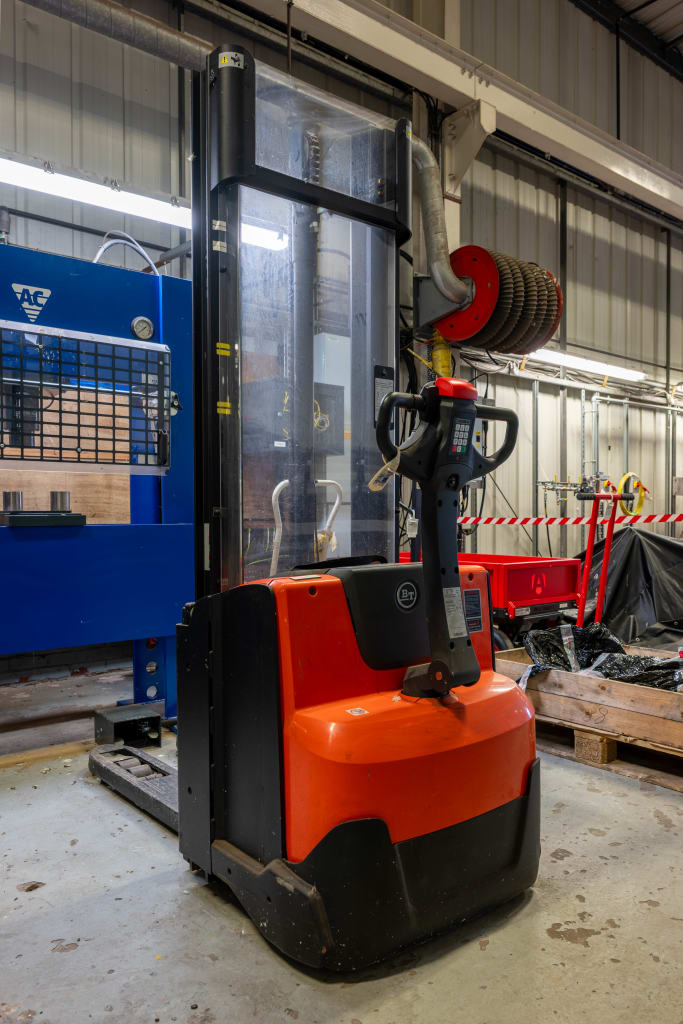

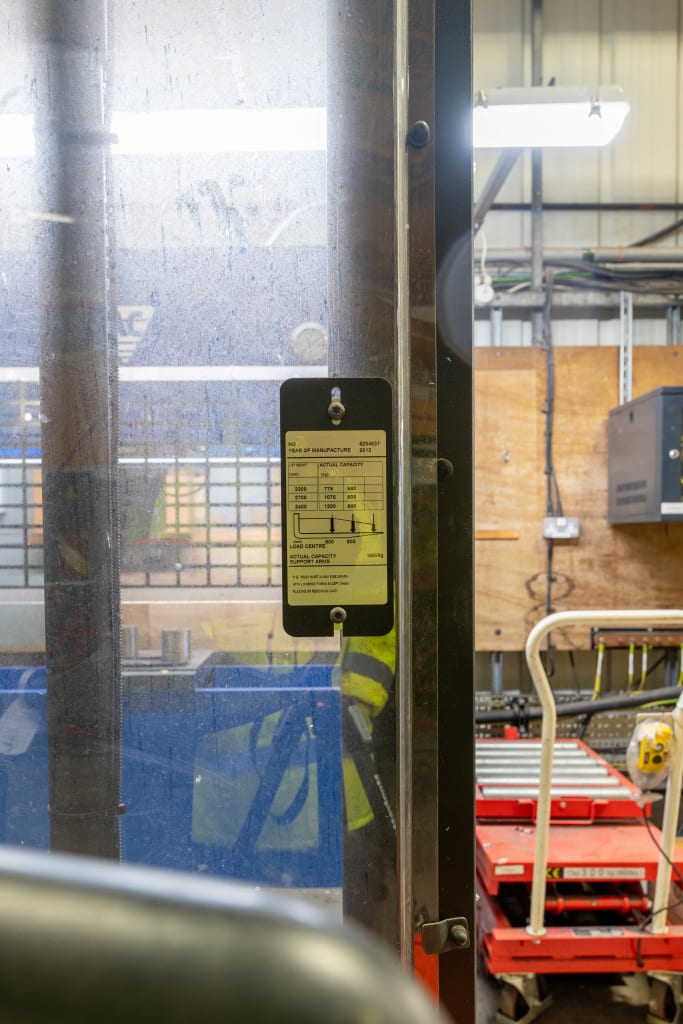

2013 BT SW20L Electric Pallet Truck
Nominal Load At COG 1.2 T. Wheel Base 1.3m. Standard Tyres 1 x +2/4. Centre Of Gravity 600mm. Lifting Height 3.3m. Traction Motor 1.5kW. Hoist Motor 2.2kW. Battery Capacity 24/225 V/Ah. Battery Weight 0.219 T. Travel Speed With/Without Load 6/6 km/h. Hoisting With/Without Load 0.12/0.27m/s. Lowering With Load 0.38m/s. Max. Climbing Ability 12%. Turning Radius 1.393m. S/No. 6254537. (2013) - LOT 11
![site]()
- LOT 12
![site]()
- LOT 13
![site]()

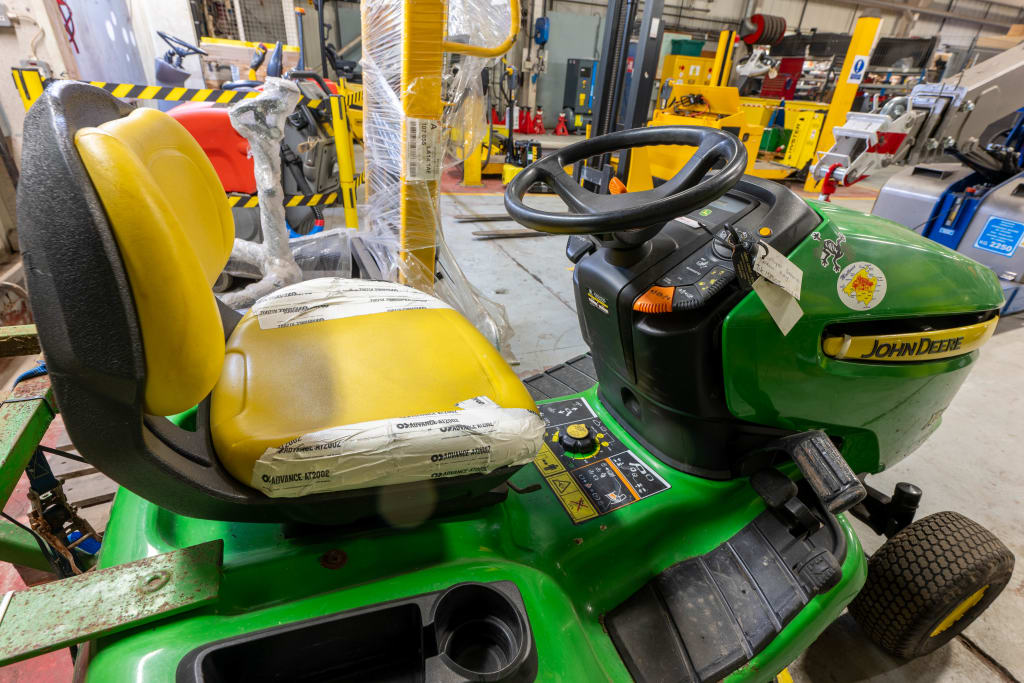

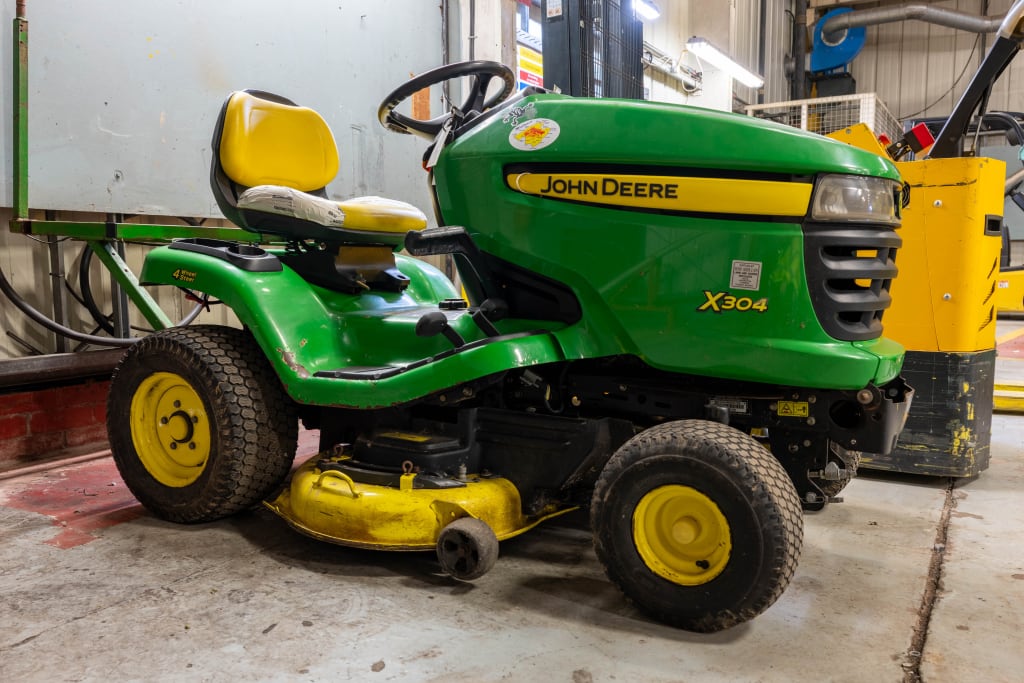

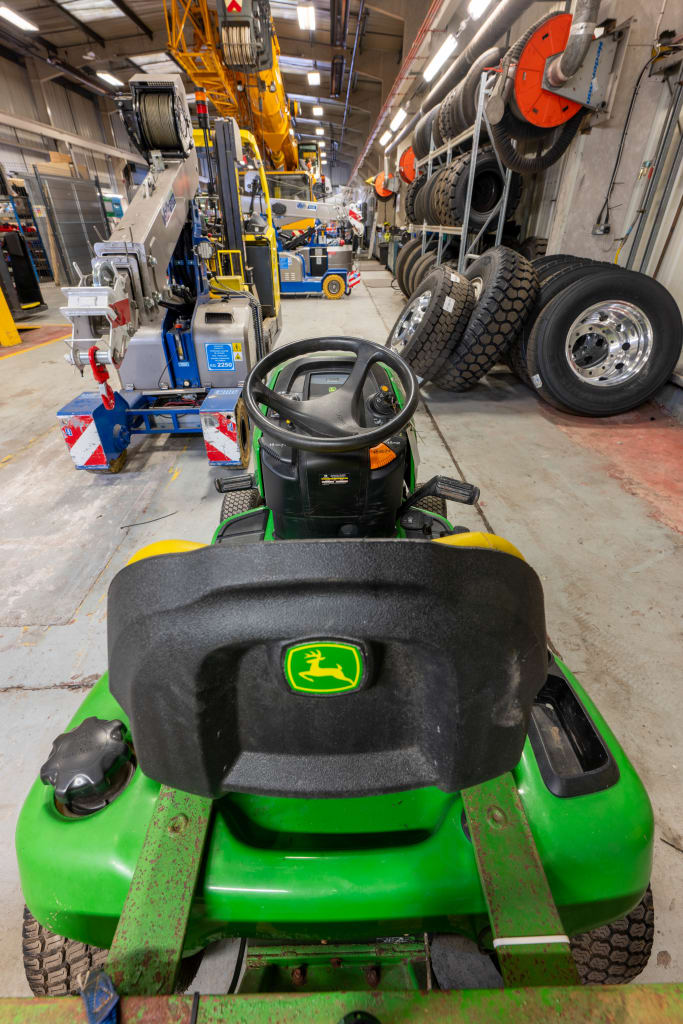

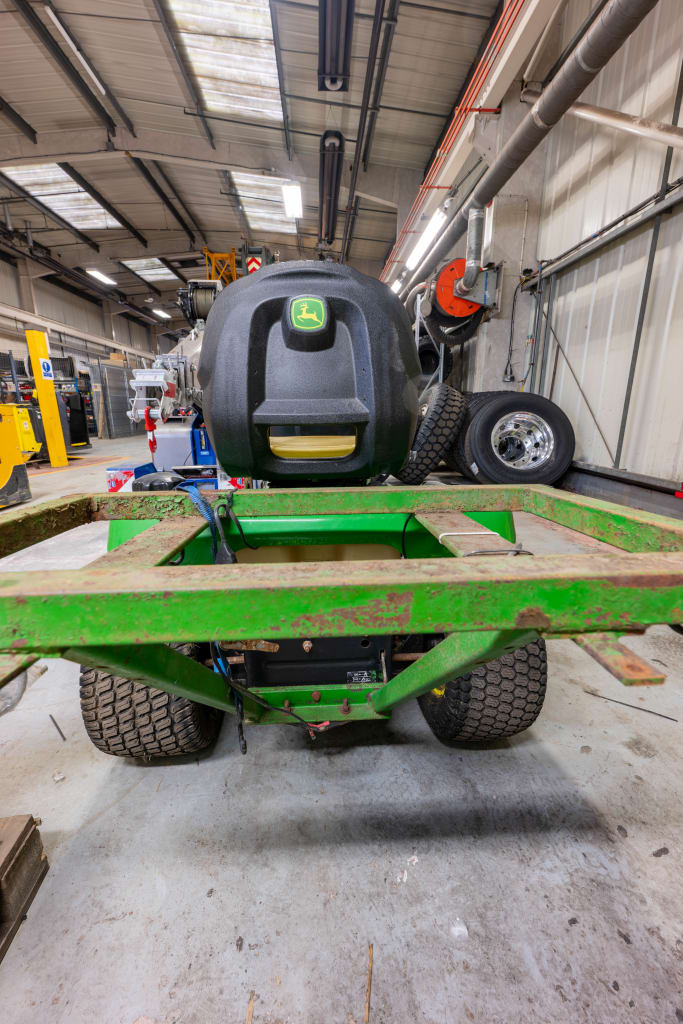

2008 John Deere X304 Petrol Tractor
Engine Power 12.7kW. Power Source: Petrol. Back Tyres 20 x 10.00-10. Front Tyres 15 x 6.00-6. Engine Cylinders: 2. Cylinder Bore x Stroke 68 x 65mm. S/No.: MOX304B085788 (2008). - LOT 15
![site]()
